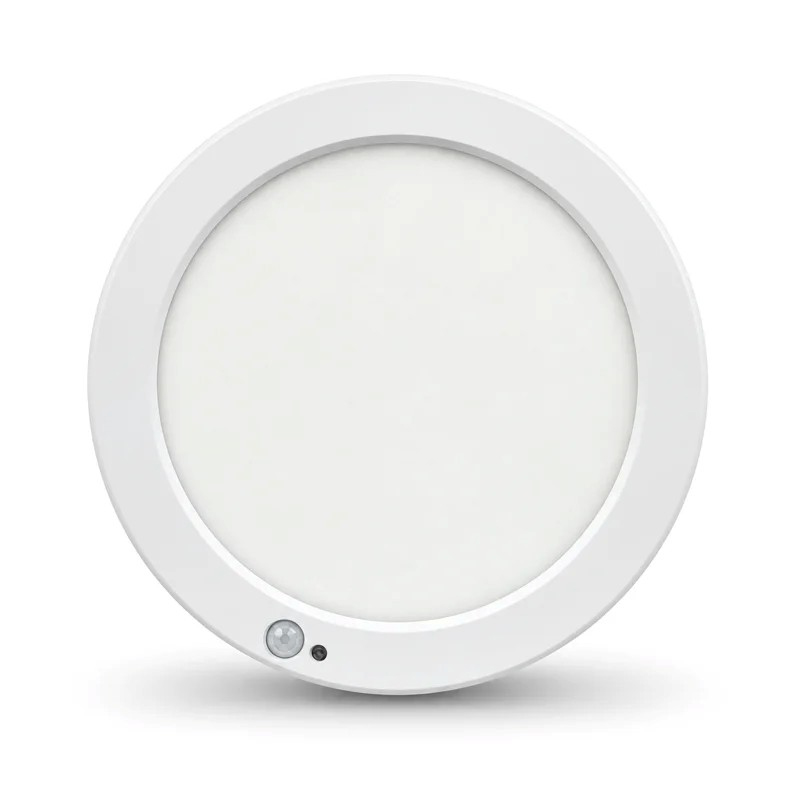

SL-LED9070R-PIR-WH-J-5CCT

For Specification Sheet

SL-LED9070R-PIR-WH-J-5CCT

Construction:

  • Round Surface Mount
  • Polycarbonate Housing
  • Edge Lit LED
  • White Finish

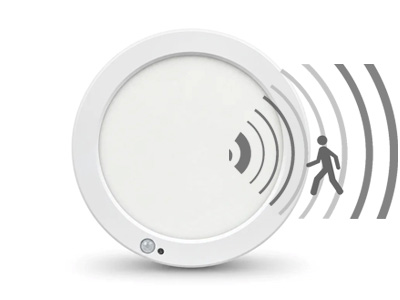

  • Integrated PIR Motion Sensor + Dusk to Dawn photocell Sensor

Light Source:

  • 15 Watts LED 1000 Lumens
  • Sensor Dims Fixture to 30% After 30 Second/3 Minute/5 Minute (Selectable)
  • When Motion is Detected, Fixtures Goes to 100% Brightness
  • Daylight Mode-Fixture Stays At 30% (Selectable)
  • Multi-Color Temperature: (2700/3000/3500/4000/5000K)
  • 90 CRI 120 Volt / Triac Dimmable
  • AC LED Driverless Technology

Notes:

  • Wet Location
  • Installation Safety Wire For Effortless Install
  • Install to any 3″ or 4″ Junction Box
  • California T24 JA8

Dimensions:

Diameter:

  • 7″

Height:

  • 7/10″
